Description
Part #: ELX-G12-07L

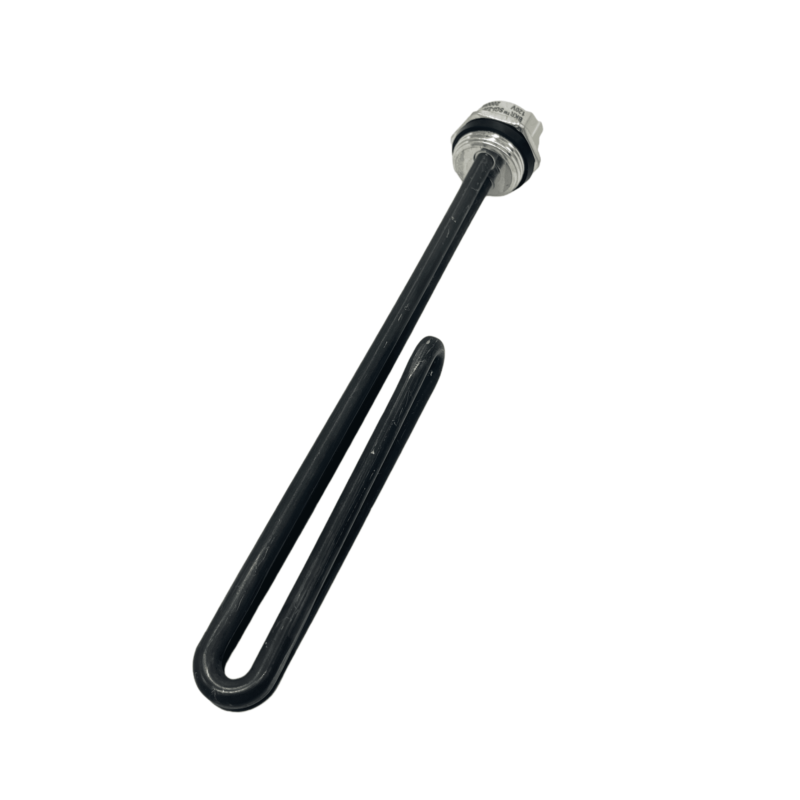

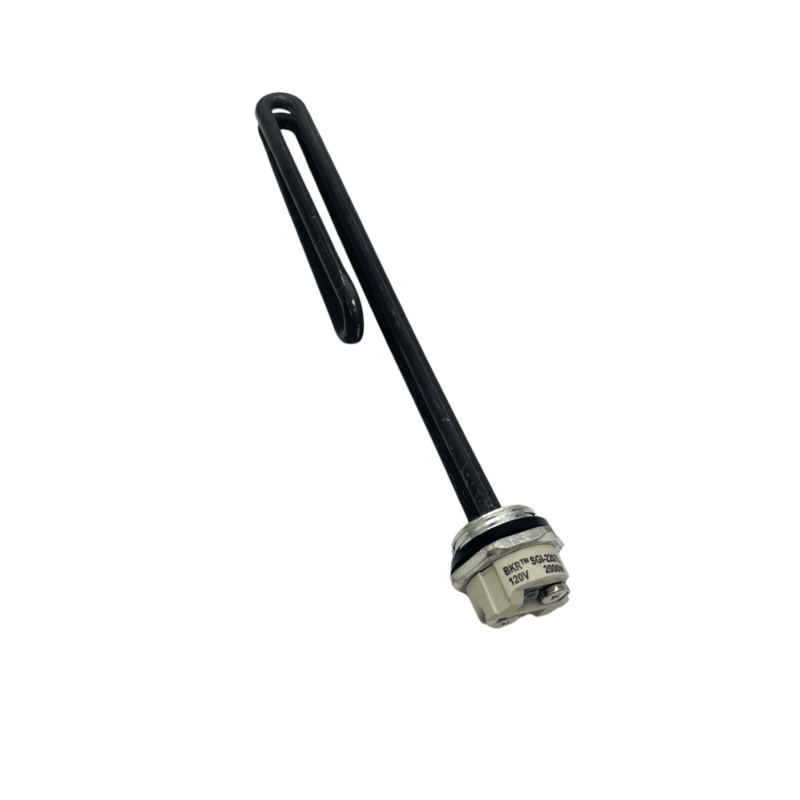

The Aqua-Hot ELX-G12-07L Electric Heating Element is a 120 VAC, 2000-watt replacement heating element designed for compatible Aqua-Hot hydronic heating systems. The electric element heats the boiler’s antifreeze and water solution, allowing the Aqua-Hot system to provide interior heat and domestic hot water while operating on electric power.
A properly functioning electric heating element allows you to use your Aqua-Hot system without relying solely on the diesel burner when adequate shore power or generator power is available. If your Aqua-Hot system operates normally on diesel but is not heating properly on electric mode, a failed electric heating element may be one of the components that needs to be inspected or replaced.
This 2000-watt Aqua-Hot heating element is intended as a direct replacement for the appropriate Aqua-Hot applications and is ideal for repairing an existing hydronic heating system rather than replacing the complete heater.
Product Features
- 120 VAC / 2000-Watt Heating Element for compatible Aqua-Hot systems
- Provides an electric heat source for the Aqua-Hot boiler fluid
- Helps provide RV interior heating and domestic hot water
- Allows compatible Aqua-Hot systems to operate using electric power when available
- Replacement part for worn, damaged or failed electric heating elements
- Designed for use in motorhome and RV hydronic heating systems
- Aqua-Hot part number ELX-G12-07L
Important Information
- Verify Compatibility Before Ordering: Aqua-Hot systems use different heating elements depending on the model and configuration. Confirm that ELX-G12-07L is the correct part number for your Aqua-Hot unit before ordering.
- Electrical Requirements: This element operates at 120 VAC and 2000 watts. Ensure the motorhome’s electrical system and Aqua-Hot configuration are designed to support the required electrical load.
- Professional Installation Recommended: Aqua-Hot heating systems contain hot boiler fluid and electrical components. Proper installation is important for safe operation and to prevent leaks or damage to the system.
- Troubleshooting: A lack of electric heat does not always indicate a failed heating element. Breakers, relays, thermostats, wiring and other Aqua-Hot controls should also be checked when diagnosing an electric heating issue.
Need help determining whether the ELX-G12-07L Aqua-Hot 2000-watt heating element is correct for your motorhome? Contact Alberta Coach & Chassis with your Aqua-Hot model and serial number, and we can help confirm the correct replacement part.
Your Hydronic Heating System, whether it is an Aqua Hot & Webasto DBW 2010 has a white label with a model number on the heater. This label can be found on the top or on the side of your Aqua Hot & Webasto Heating System.
List of compatible model numbers,
Aqua Hot
AHE-100-03S
AHE-100-04S
AHE-120-03X
AHE-120-04X
AHE-130-03X
AHE-130-04X
AHE-600-D01
AHE-600-D03
AHE-600-D04
AHE-675-D04
